Product Description

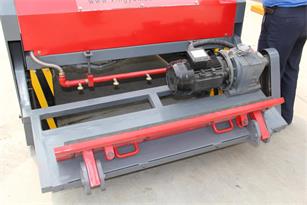

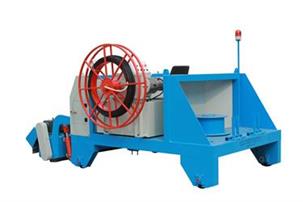

Precast concrete hollow slab multi function trolley

1.summary

Precast concrete hollow slab multi function trolley is used for hollow core slab platform for cleaning, release agent spraying and wire pay-off  process. It can be widely used in cement, construction and other industries. It has novelty structure, high efficiency, easy operation. It is the indispensable ones in the industries such as cement product.

Model:DLXJ500-1200

Model:DLXJ380-1500

2.Equipments working environment

The machines is suitable for following stipulate environment and condition to work:

■Ambient air temperature: -25℃-40℃

■Humidity: relative humidity shall not exceed 50% of the range and the principle of temperature changes is not caused by condensation.

■Altitude: below1000 meters.

■Aerial pollution: Not too much dust, acid and other corrosive gas and salt.

3.Technology data

      Model: DLXJ500-1200

Year of manufacture: 2016

      Battery parameters:

Total power：8.5kw

The battery capacity: 400Ah/5hr

Operating voltage: 48V

Charging time discharge (80%)：8-10小時(shí)

The charger operating voltage：380VAC/50Hz

      Drive motor: 48V 3kw  Brushless dc motor speed: 1500r/min

Walking wheel track: Horizontal 1322mm; Longitudinal 2020mm

      Traveling speed: Wire pay-off: 0-30m/min

Release agent spraying: 0-40m/min

 Cleaning bed: 0-40m/min

 Empty backhaul: 0-60 m/min

operational capability:  9.5mm steel strand for 3-4 pieces each time

12.5mm steel strand for 3-4 pieces each time

Release agent spraying width <1300mm

Cleaning motor: 48V 4kw Brushless dc motor speed: 1500r/min

Rolling brush speed：200 r/min

   Overall dimensions：3650x1650x2560mm                                      （length x width x height）

       Self-weight：2800Kg
